<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: DICOM Bandwidth Sensor

The DICOM Bandwidth sensor monitors the bandwidth usage of a C-STORE request to a DICOM capable device. It sends one or more DICOM images and files that you have stored in a folder on a local disk or share and checks if the DICOM device can handle the C-STORE request. You can use the sensor to test your Picture Archiving and Communication (PACS) system, for example.

The sensor shows the following:

  • C-STORE bandwidth (bandwidth usage of the sent files)
  • Response time of the C-STORE request
  • C-STORE size (total size of the sent files)

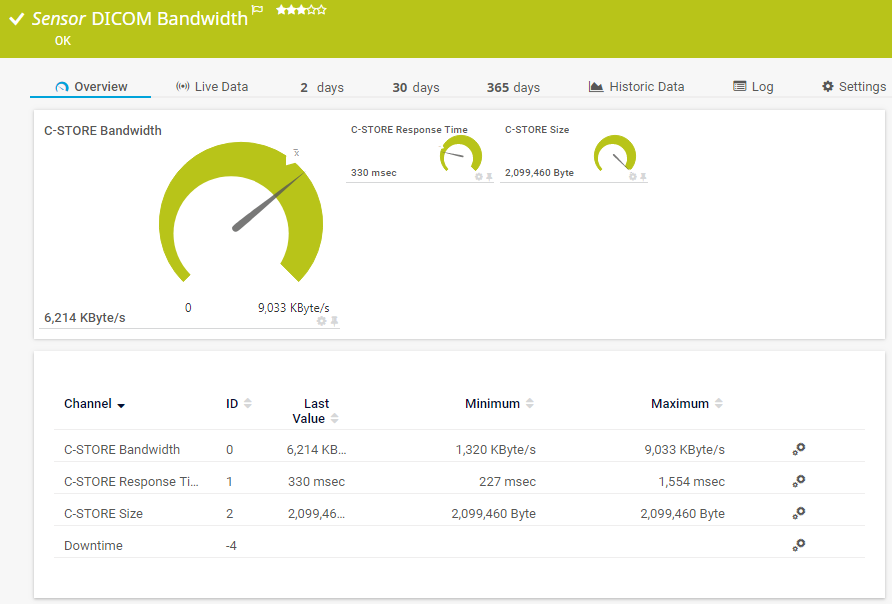

DICOM Bandwidth Sensor

DICOM Bandwidth Sensor

Sensor in Other Languages

Dutch: DICOM Bandbreedte Sensor, French: Capteur de bande passante DICOM, German: DICOM-Bandbreiten-Sensor, Japanese: DICOM帯域幅センサー, Portuguese: Sensor de largura de banda do DICOM, Russian: Сенсор пропускной способности DICOM, Simplified Chinese: DICOM 带宽传感器, Spanish: Sensor de anchura de banda de DICOM

Remarks

  • Requires .NET 4.7.2 or later on the probe system.
  • icon-betaCurrently, this sensor type is in beta status. The methods of operating can change at any time, as well as the available settings. Do not expect that all functions will work properly, or that this sensor works as expected at all. Be aware that this type of sensor can be removed again from PRTG at any time.

Requirement: .NET Framework

icon-toolsThis sensor type requires the Microsoft .NET Framework. .NET 4.7.2 or later must be installed on the computer running the PRTG probe, either on the local system (on every node, if on a cluster probe), or on the system running the remote probe. If the framework is missing, you cannot create this sensor.

icon-book-bulbFor more information, see the Knowledge Base: Which .NET version does PRTG require?

Add Sensor

The Add Sensor dialog appears when you manually add a new sensor to a device. It only shows the setting fields that are required for creating the sensor. Therefore, you will not see all setting fields in this dialog. You can change (nearly) all settings in the sensor's Settings tab later.

Sensor Settings

On the details page of a sensor, click the Settings tab to change its settings.

icon-i-roundUsually, a sensor connects to the IP Address or DNS Name of the parent device where you created this sensor. See the Device Settings for details. For some sensor types, you can define the monitoring target explicitly in the sensor settings. See below for details on available settings.

Basic Sensor Settings

Sensor Name

Enter a meaningful name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

Parent Tags

Shows Tags that this sensor inherits from its parent device, group, and probe. This setting is shown for your information only and cannot be changed here.

Tags

Enter one or more Tags, separated by spaces or commas. You can use tags to group sensors and use tag–filtered views later on. Tags are not case sensitive. We recommend that you use the default value.

There are default tags that are automatically predefined in a sensor's settings when you add a sensor. See section Default Tags below.

You can add additional tags to the sensor if you like. Other tags are automatically inherited from objects further up in the device tree. These are visible above as Parent Tags.

icon-i-roundIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with round parentheses (()) or angle brackets (<>).

Priority

Select a priority for the sensor. This setting determines where the sensor is placed in sensor lists. Top priority is at the top of a list. Choose from one star (low priority) to five stars (top priority).

Default Tags

dicom bandwidth

DICOM Connection

Calling Application Entity Title

Enter the Application Entity Title (AET) of PRTG to initialize a DICOM connection.

icon-i-blueThe AET is case sensitive and does not support special characters.

Called Application Entity Title

Enter the configured Application Entity Title (AET) of the target system to initialize a DICOM connection.

icon-i-blueThe AET is case sensitive and does not support special characters.

Port

Enter the port of the DICOM interface that is used for the connection.

Timeout (Sec.)

Enter a timeout in seconds for the request. If the reply takes longer than this value defines, the sensor will cancel the request and show a corresponding error message. Please enter an integer value. The maximum value is 900 seconds (15 minutes).

Bandwidth Settings

File Path

Enter the full path to the folder where you have stored your DICOM files and images (ending with .dcm). The sensor will send all files in the folder to the target DICOM device with each request. You can use any folder on a disk or share that the PRTG probe on which the sensor runs has access to.

icon-speechFor example, enter C:\DICOM to send files that are stored in a folder named "DICOM" on the parent probe system.

icon-i-round-redThe path must contain *.dcm files. Enter the path without a backslash (\) at the end.

Debug Options

Sensor Result

Define what PRTG will do with the sensor results. Choose between:

  • Discard sensor result: Do not store the sensor result.
  • Write sensor result to disk (Filename: Result of Sensor [ID].txt): Store the last result received from the sensor to the Logs (Sensors) directory in the PRTG data folder on the probe system the sensor is running on (on the Master node if in a cluster). File names: Result of Sensor [ID].txt and Result of Sensor [ID].Data.txt. This is for debugging purposes. PRTG overwrites these files with each scanning interval.
    icon-book-arrowsFor more information on how to find the folder used for storage, see section Data Storage.

icon-prtg-on-demandThis option is not available when the sensor runs on the Hosted Probe of a PRTG hosted by Paessler instance.

Sensor Display

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed below the sensor's name. The available options depend on what channels are available for this sensor.

icon-i-roundYou can set another primary channel later by clicking the pin symbol of a channel in the sensor's Overview tab.

Graph Type

Define how different channels will be shown for this sensor.

  • Show channels independently (default): Show an own graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph that visualizes the different components of your total traffic.
    icon-i-roundThis option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channel Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit
